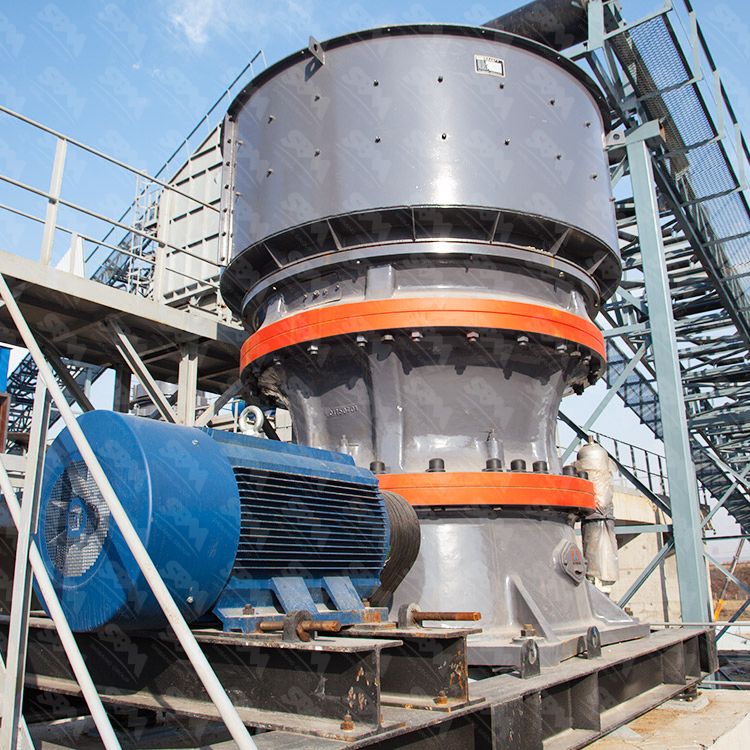

HST Single Cylinder Hydraulic Cone Crusher

Input Size

0-560mm

Capacity

45-2185TPH

Applicable Material

Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

Technical Consultation

Advantages

Cases

Material

High Efficiency

It combines the optimized strength design and high quality components to make the equipment gets greater passing capacity, stronger carrying capacity and larger crushing ratio.

High Degree of Automation

HST Single Cylinder Hydraulic Cone Crusher has equipped with full automatic control system. It can continuously monitor the operation status of crusher and automatically adjust the equipment.

Multi-cavity design

HST Single Cylinder Hydraulic Cone Crusher has a variety of crushing chambers to choose from, fully meeting the requirements of two-stage crushing, three-stage crushing and four-stage crushing.

High Machining Accuracy

With dozens of CNC machine tool production lines, advanced flaw detection and quality inspection equipment. SBM can realize high machining accuracy and stable operation.

HST100

Cavity Type	S1
Input Size(MAX)(mm)	240
Output Size(MIN)(mm)	22
Capacity(t/h)	85-170
Power(MAX)(kw)	90
Cavity Type	S2
Input Size(MAX)(mm)	200
Output Size(MIN)(mm)	19
Capacity(t/h)	70-130
Power(MAX)(kw)	90
Cavity Type	H1
Input Size(MAX)(mm)	135
Output Size(MIN)(mm)	10
Capacity(t/h)	45-115
Power(MAX)(kw)	90
Cavity Type	H2
Input Size(MAX)(mm)	65
Output Size(MIN)(mm)	8
Capacity(t/h)	35-80
Power(MAX)(kw)	90
Cavity Type	H3
Input Size(MAX)(mm)	35
Output Size(MIN)(mm)	4
Capacity(t/h)	27-60
Power(MAX)(kw)	90

HST160

Cavity Type	S1
Input Size(MAX)(mm)	360
Output Size(MIN)(mm)	25
Capacity(t/h)	120-345
Cavity Type	S2
Power(MAX)(kw)	160
Input Size(MAX)(mm)	300
Output Size(MIN)(mm)	22
Capacity(t/h)	105-305
Cavity Type	S3
Power(MAX)(kw)	160
Input Size(MAX)(mm)	235
Output Size(MIN)(mm)	19
Capacity(t/h)	90-275
Cavity Type	H1
Power(MAX)(kw)	160
Input Size(MAX)(mm)	185
Output Size(MIN)(mm)	13
Capacity(t/h)	66-210
Cavity Type	H2
Power(MAX)(kw)	160
Input Size(MAX)(mm)	90
Output Size(MIN)(mm)	10
Capacity(t/h)	65-165
Cavity Type	H3
Power(MAX)(kw)	160
Input Size(MAX)(mm)	50
Output Size(MIN)(mm)	6
Capacity(t/h)	48-105
Power(MAX)(kw)	160

HST250

Cavity Type	S1
Input Size(MAX)(mm)	450
Output Size(MIN)(mm)	35
Capacity(t/h)	255-605
Power(MAX)(kw)	250
Cavity Type	S2
Input Size(MAX)(mm)	400
Output Size(MIN)(mm)	29
Capacity(t/h)	215-515
Power(MAX)(kw)	250
Cavity Type	S3
Input Size(MAX)(mm)	300
Output Size(MIN)(mm)	25
Capacity(t/h)	190-490
Power(MAX)(kw)	250
Cavity Type	H1
Input Size(MAX)(mm)	215
Output Size(MIN)(mm)	16
Capacity(t/h)	110-395
Power(MAX)(kw)	250
Cavity Type	H2
Input Size(MAX)(mm)	110
Output Size(MIN)(mm)	13
Capacity(t/h)	115-340
Power(MAX)(kw)	250
Cavity Type	H3
Input Size(MAX)(mm)	70
Output Size(MIN)(mm)	8
Capacity(t/h)	90-255
Power(MAX)(kw)	250

HST315

Cavity Type	S1
Input Size(MAX)(mm)	560
Output Size(MIN)(mm)	41
Capacity(t/h)	335-1050
Power(MAX)(kw)	315
Cavity Type	S2
Input Size(MAX)(mm)	500
Output Size(MIN)(mm)	38
Capacity(t/h)	305-895
Power(MAX)(kw)	315
Cavity Type	H1
Input Size(MAX)(mm)	275
Output Size(MIN)(mm)	16
Capacity(t/h)	170-665
Power(MAX)(kw)	315
Cavity Type	H2
Input Size(MAX)(mm)	135
Output Size(MIN)(mm)	16
Capacity(t/h)	90-505
Power(MAX)(kw)	315
Cavity Type	H3
Input Size(MAX)(mm)	65
Output Size(MIN)(mm)	13
Capacity(t/h)	205-320
Power(MAX)(kw)	315

HST560

Cavity Type	H1
Input Size(MAX)(mm)	300
Output Size(MIN)(mm)	22
Capacity(t/h)	430-1515
Power(MAX)(kw)	560
Cavity Type	H2
Input Size(MAX)(mm)	155
Output Size(MIN)(mm)	19
Capacity(t/h)	380-1375
Power(MAX)(kw)	560
Cavity Type	H3
Input Size(MAX)(mm)	80
Output Size(MIN)(mm)	10
Capacity(t/h)	270-775
Power(MAX)(kw)	560

HST750

Cavity Type	H1
Input Size(MAX)(mm)	370
Output Size(MIN)(mm)	25
Capacity(t/h)	460-2130
Power(MAX)(kw)	750
Cavity Type	H2
Input Size(MAX)(mm)	195
Output Size(MIN)(mm)	22
Capacity(t/h)	525-1605
Power(MAX)(kw)	750
Cavity Type	H3
Input Size(MAX)(mm)	85
Output Size(MIN)(mm)	10
Capacity(t/h)	350-885
Power(MAX)(kw)	750
